32XL037-6A4 Imperial Pitch Pulleys

32XL037-6A4, A 6A3-32NF03710, PB32XL037, 78230186, PT032D08L06N, 32XLB037, 32AXL037-5/16, 20182041, 113413, 32XL037

Product Details for 32XL037-6A4

Comparable to: 32XL037-6A4, A 6A3-32NF03710, PB32XL037, 78230186, PT032D08L06N, 32XLB037, 32AXL037-5/16, 20182041, 113413, 32XL037

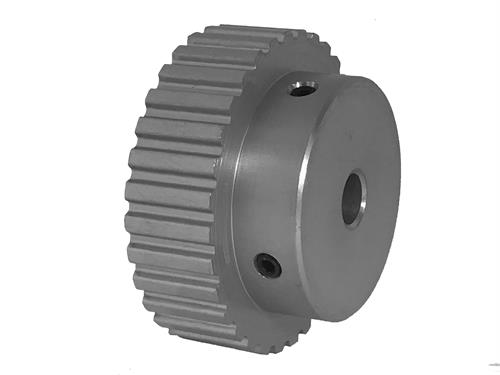

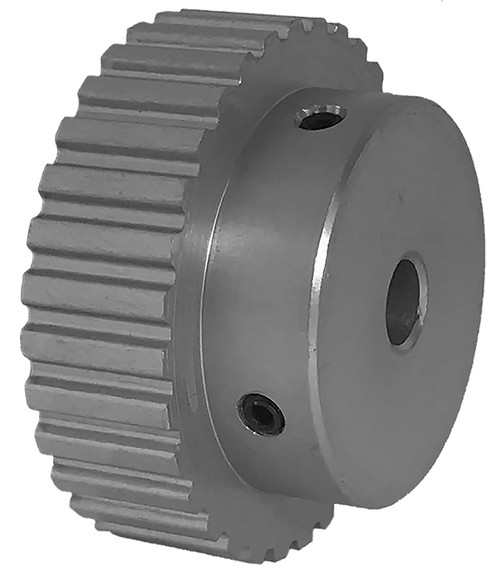

32XL037-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Product Number 32XL037-6A4
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.313
Unit System Inch
Weight (lb) 0.28
List Price (1-9 Qty.) (USD) 13.19
Discount Price (10-24 Qty.) (USD) 11.87
Discount Price (25-49 Qty.) (USD) 9.23
Discount Price (50-99 Qty.) (USD) 8.24
Discount Price (100-249 Qty.) (USD) 7.25
Part Number Cross Reference 32XL037-6A4, A 6A3-32NF03710, PB32XL037, 78230186, PT032D08L06N, 32XLB037, 32AXL037-5/16, 20182041, 113413, 32XL037

Documentation

Download Catalog 2015_BBMAN_CATALOG_22.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 32XL037-6A4_REACH_cert
RoHS Certification 32XL037-6A4_RoHS_cert
