32XL037-6FA3 Imperial Pitch Pulleys

32XL037-6FA3, PT032D10L06T

Product Details for 32XL037-6FA3

Comparable to: 32XL037-6FA3, PT032D10L06T

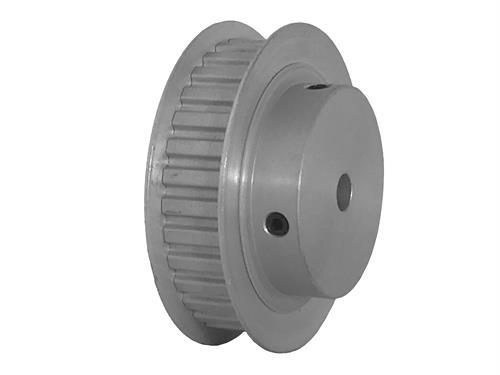

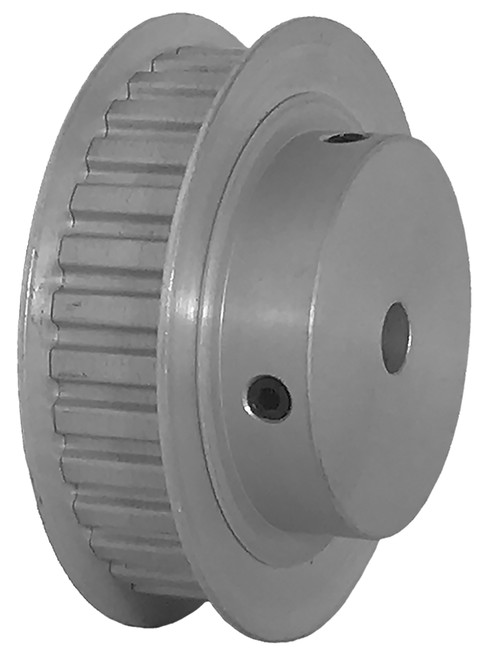

32XL037-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 32XL037-6FA3
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Flange Diameter (in) 2.250
Face Width (in) 0.563
Overall Length (in) 0.906
Hub Diameter (in) 1.437
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.430
Unit System Inch
Weight (lb) 0.30
List Price (1-9 Qty.) (USD) 16.65
Discount Price (10-24 Qty.) (USD) 14.98
Discount Price (25-49 Qty.) (USD) 12.07
Discount Price (50-99 Qty.) (USD) 10.4
Discount Price (100-249 Qty.) (USD) 9.16
Part Number Cross Reference 32XL037-6FA3, PT032D10L06T

Documentation

Download Catalog 2015_BBMAN_CATALOG_20.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 32XL037-6FA3_REACH_cert
RoHS Certification 32XL037-6FA3_RoHS_cert
