32XL037-6FA6 Imperial Pitch Pulleys

32XL037-6FA6, A 6A3-32DF03716, A6A3-32DF03716

Product Details for 32XL037-6FA6

Comparable to: 32XL037-6FA6, A 6A3-32DF03716, A6A3-32DF03716

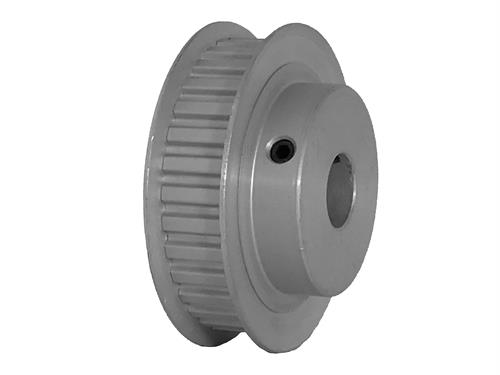

32XL037-6FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Specifications

Product Number 32XL037-6FA6
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Flange Diameter (in) 2.250
Face Width (in) 0.563
Overall Length (in) 0.906
Hub Diameter (in) 1.437
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.187
Weight (lb) 0.30
Part Number Cross Reference 32XL037-6FA6, A 6A3-32DF03716, A6A3-32DF03716
