32XL037M6A10 Metric Pulleys

32XL037M6A10, A 6A3M32NF09510

Product Details for 32XL037M6A10

Comparable to: 32XL037M6A10, A 6A3M32NF09510,

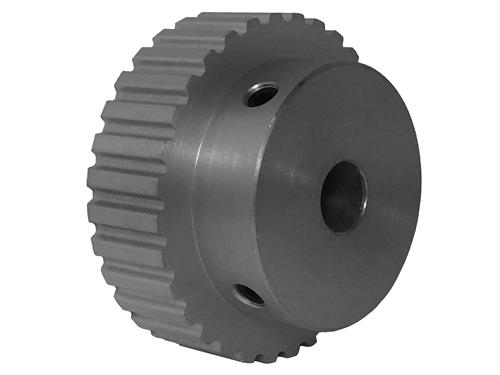

32XL037M6A10, Timing Pulley, Powerhouse Timing, 10 mm Bore, Aluminum

Specifications

Product Number 32XL037M6A10
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 10.00
Set Screw 2 x M5 @ 90°
Pulley Belt Width (mm) 9.50
Unit System Inch
P.D. (mm) 51.70
O.D. (mm) 51.20
Face Width (mm) 25.40
Overall Length (mm) 9.50
Hub Diameter (mm) 38.00
Weight (lb) 0.25
List Price (1-9 Qty.) (USD) 13.19
Discount Price (10-24 Qty.) (USD) 11.87
Discount Price (25-49 Qty.) (USD) 9.23
Discount Price (50-99 Qty.) (USD) 8.24
Discount Price (100-249 Qty.) (USD) 7.25
Part Number Cross Reference 32XL037M6A10, A 6A3M32NF09510,

Documentation

Download Catalog 2015_BBMAN_CATALOG_29.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 32XL037M6A10_REACH_cert
RoHS Certification 32XL037M6A10_RoHS_cert
