33-14MX125-6FS16 Powerhouse™ Mx Pulleys

33-14MX125-6FS16, PB14MX-33S-125, 77168033, PB14MCS-33-125, 33G-14M-125-MPB, 208398

Product Details for 33-14MX125-6FS16

Comparable to: 33-14MX125-6FS16, PB14MX-33S-125, 77168033, PB14MCS-33-125, 33G-14M-125-MPB, 208398

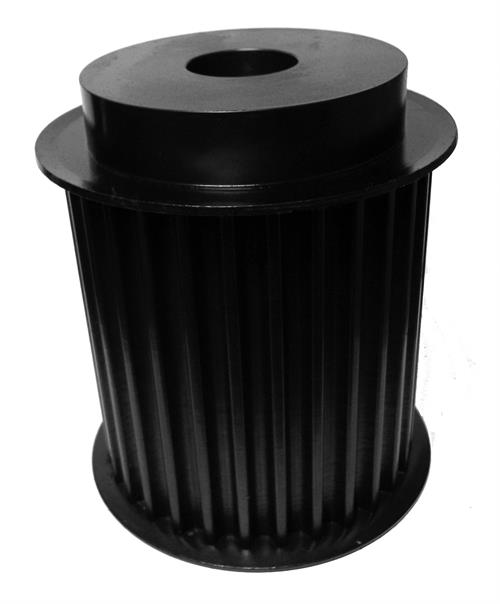

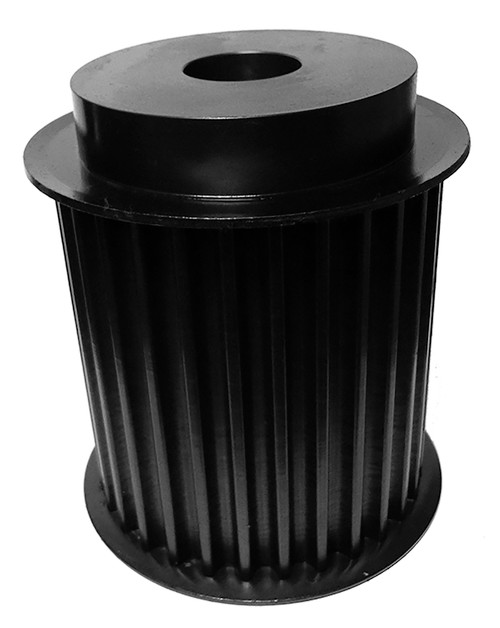

33-14MX125-6FS16, Timing Pulley, Powerhouse MX, 1-1/2 Inch Bore, Cast Iron

Specifications

Product Number 33-14MX125-6FS16
Teeth 33
Tooth Style GT2 14mm
For Belt Width (mm) 125.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 5.790
Outside Diameter (in) 5.680
Flange Diameter (in) 6.465
Face Width (in) 5.609
Overall Length (in) 6.688
Hub Diameter (in) 4.890
Min. Bore (in) 1.5
Pulley Belt Width (in) 5.290
Unit System Inch
Max. Bore (in) 4.64
Weight (lb) 37.00
Part Number Cross Reference 33-14MX125-6FS16, PB14MX-33S-125, 77168033, PB14MCS-33-125, 33G-14M-125-MPB, 208398
