33-14MX37-2517 Powerhouse® Mx Pulleys

33-14MX37-2517, 14MX-33S-37, B14MCS-33-37, 33G-14M-37-TL2517, 20839798

Product Details for 33-14MX37-2517

Comparable to: 33-14MX37-2517, 14MX-33S-37, B14MCS-33-37, 33G-14M-37-TL2517, 208397

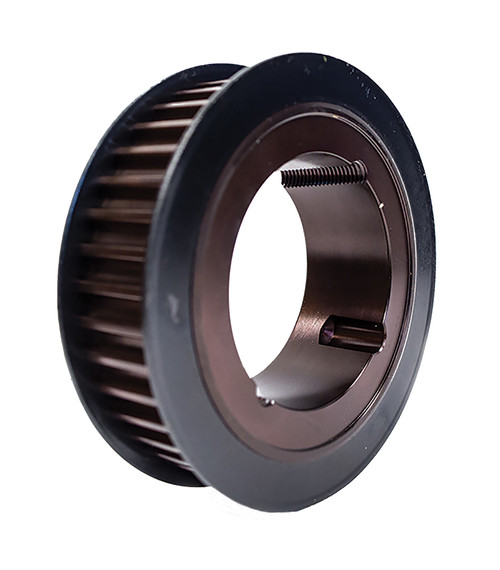

33-14MX37-2517, Timing Pulley, Powerhouse MX, 2517 Bushing, Cast Iron

Specifications

Product Number 33-14MX37-2517
Teeth 33
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.790
Outside Diameter (in) 5.680
Flange Diameter (in) 6.465
Face Width (in) 1.690
Overall Length (in) 2.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.740
Unit System Inch
Bushing 2517
Max. Bore (in) 2.6875
Weight (lb) 7.80
Part Number Cross Reference 33-14MX37-2517, 14MX-33S-37, B14MCS-33-37, 33G-14M-37-TL2517, 208397
