33-14MX90-6FS16, Timing Pulley

33-14MX90-6FS16

Click to Enlarge

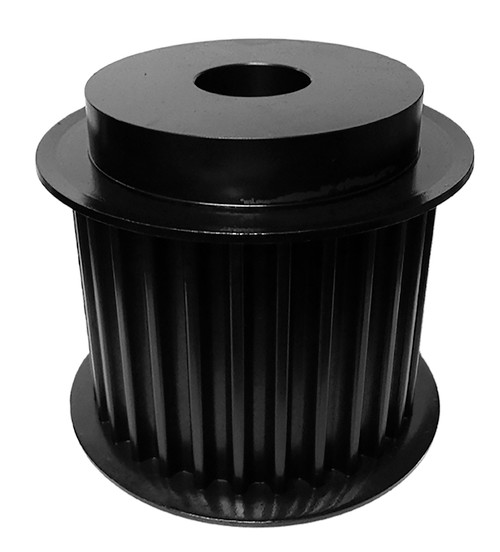

33-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 33-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	33-14MX90-6FS16
Teeth	33
Tooth Style	14MX
For Belt Width (mm)	90.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.500
Bore Description	1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	5.790
Outside Diameter (in)	5.680
Flange Diameter (in)	6.465
Face Width (in)	4.203
Overall Length (in)	5.203
Hub Diameter (in)	4.890
Min. Bore (in)	1.5
Pulley Belt Width (in)	3.880
Unit System	Inch
P.D. (mm)	147.00
O.D. (mm)	144.30
MOQ	1
Weight (lb)	31.07
Part Number Cross Reference	PB14MX-33S-90, PB14MCS-33-90, 33G-14M-90-MPB, 20839801, PB14MX-33S-90 MPB, 14MPC33S90MPB, 33-14MX90-6FS16, 482133, 33-14MX90-6FS16
