34-14M115-6FS13, Timing Pulley

34-14M115-6FS13 - Steel Powerhouse®HTD® Pulleys

Product Details for 34-14M115-6FS13

Comparable to: P34-14M-115

Click to Enlarge

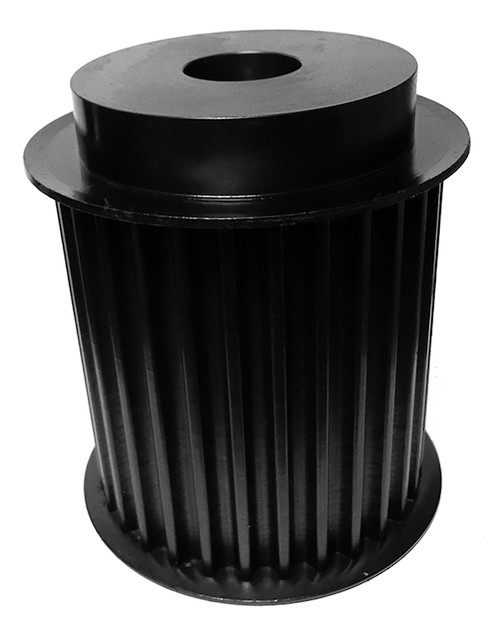

34-14M115-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 34-14M115-6FS13 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-14M115-6FS13
Teeth 34
Tooth Style HTD 14mm
For Belt Width (mm) 115
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.500
Face Width (in) 5.250
Overall Length (in) 5.250
Hub Diameter (in) 4.890
Min. Bore (in) 1.250
Unit System Inch
MOQ 1
Weight (lb) 44.40
Part Number Cross Reference P34-14M-115
