34-14M85-6FS13, Timing Pulley

34-14M85-6FS13

Click to Enlarge

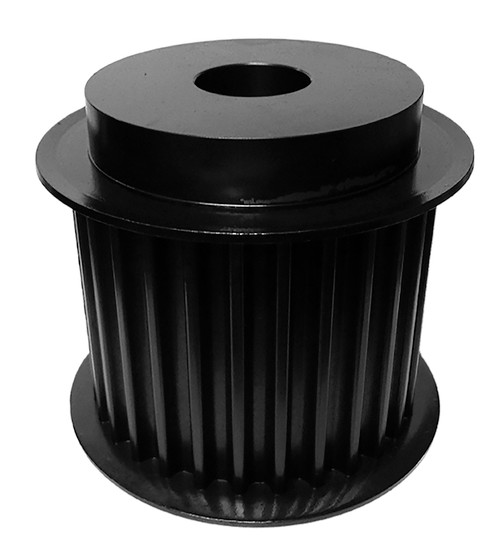

34-14M85-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 34-14M85-6FS13 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	34-14M85-6FS13
Teeth	34
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.250
Bore Description	1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in)	5.965
Outside Diameter (in)	5.855
Flange Diameter (in)	6.500
Face Width (in)	4.000
Overall Length (in)	4.000
Hub Diameter (in)	4.890
Min. Bore (in)	1.25
Unit System	Inch
P.D. (mm)	152.00
O.D. (mm)	148.70
MOQ	1
Weight (lb)	19.40
Part Number Cross Reference	34-14M85-6FS13, 34-14M85-6FS13
