34-14MX68-2517, Timing Pulley

34-14MX68-2517 - Cast Iron Powerhouse® MX Pulleys

Product Details for 34-14MX68-2517

Comparable to: 34-14MX68-2517, 14MX-34S-68, B14MCS-34-68, 34G-14M-68-TL2517, 208398

Click to Enlarge

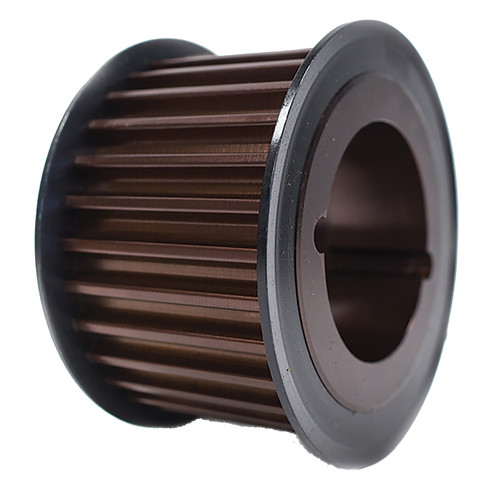

34-14MX68-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-14MX68-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-14MX68-2517
Teeth 34
Tooth Style GT2 14mm
For Belt Width (mm) 68.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.465
Face Width (in) 3.328
Overall Length (in) 3.328
Min. Bore (in) 0.500
Pulley Belt Width (in) 3.010
Unit System Inch
Bushing 2517
Max. Bore (in) 2.6875
Weight (lb) 12.61
Part Number Cross Reference 34-14MX68-2517, 14MX-34S-68, B14MCS-34-68, 34G-14M-68-TL2517, 208398
