34-14P115-2517, Timing Pulley

34-14P115-2517 - Cast Iron Powerhouse® Pulleys

Product Details for 34-14P115-2517

Comparable to: P34-14MGT-115, 2764199, B3414M115TL, P34-14M-115-2517, 20182783

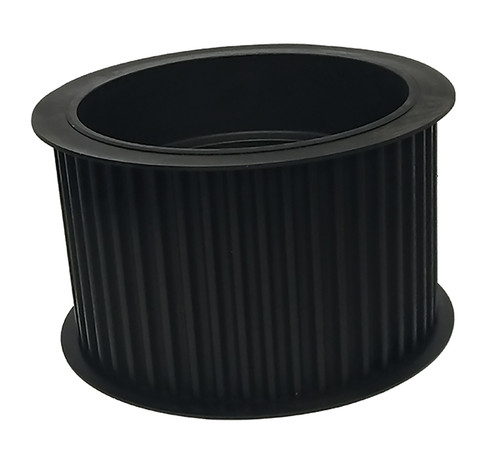

Click to Enlarge

34-14P115-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-14P115-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-14P115-2517
Teeth 34
Tooth Style 14P
For Belt Width (mm) 115
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.465
Face Width (in) 5.250
Overall Length (in) 5.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 4.930
Unit System Inch
Bushing 2517
MOQ 1
Weight (lb) 18.90
Part Number Cross Reference P34-14MGT-115, 2764199, B3414M115TL, P34-14M-115-2517, 20182783
