34-3P09-6A3, Timing Pulley

34-3P09-6A3 - Aluminum Powerhouse® Pulleys

34-3P09-6A3

Click to Enlarge

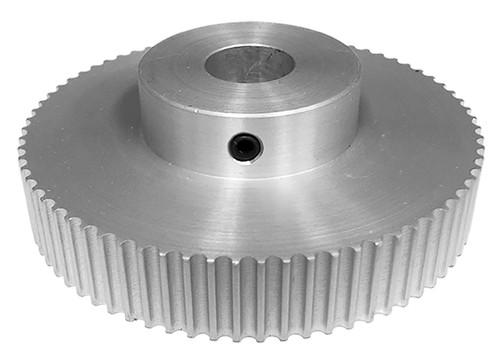

34-3P09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-3P09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-3P09-6A3
Teeth 34
Tooth Style 3P
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.278
Outside Diameter (in) 1.248
Face Width (in) 0.527
Overall Length (in) 0.833
Hub Diameter (in) 0.921
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 31.70
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference A 6A53-034NF0908, A6A53-034NF0908, 3MR-34S-09 6F, 34-3P09-6A3, 34-3P09-6A3
Set Screw Quantity 2
