34-5M15-6A3, Timing Pulley

34-5M15-6A3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 34-5M15-6A3

Comparable to: A 6A25-034NF1508, A6A25-034NF1508, PT034G08L15N

Click to Enlarge

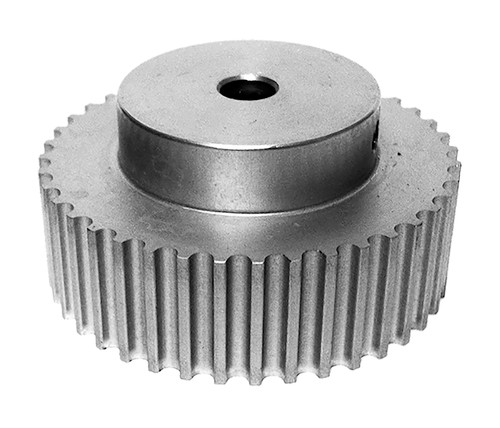

34-5M15-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-5M15-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-5M15-6A3
Teeth 34
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 2.130
Outside Diameter (in) 2.085
Face Width (in) 0.781
Overall Length (in) 1.093
Hub Diameter (in) 1.375
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.25
Part Number Cross Reference A 6A25-034NF1508, A6A25-034NF1508, PT034G08L15N
Set Screw Quantity 2
