34-5P09-6FA3, Timing Pulley

34-5P09-6FA3

Click to Enlarge

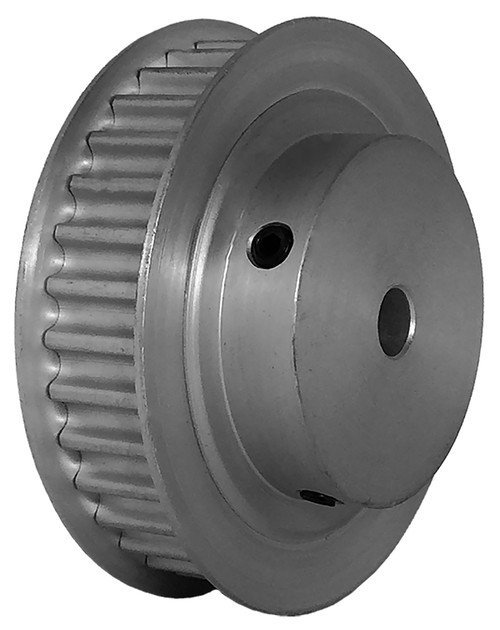

34-5P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-5P09-6FA3 Timing Pulleys and Toronto Gear View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	34-5P09-6FA3
Teeth	34
Tooth Style	5P
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	2.130
Outside Diameter (in)	2.085
Flange Diameter (in)	2.250
Face Width (in)	0.546
Overall Length (in)	0.859
Hub Diameter (in)	1.375
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	54.00
O.D. (mm)	53.00
MOQ	1
Weight (lb)	0.25
Part Number Cross Reference	P34-5MGT-09AL, 34-5P09-6FA3, 34-5P09-6FA3
Set Screw Quantity	2
