34-8MX12-1610, Timing Pulley

34-8MX12-1610 - Cast Iron Powerhouse® MX Pulleys

34-8MX12-1610

Click to Enlarge

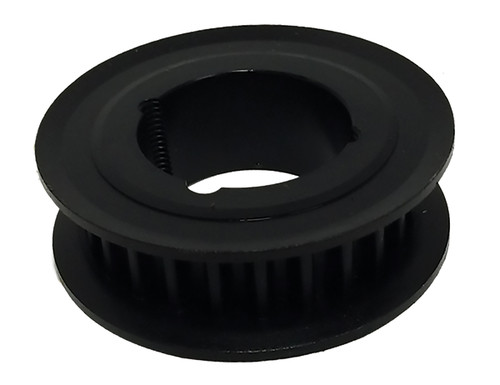

34-8MX12-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-8MX12-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-8MX12-1610
Teeth 34
Tooth Style 8MX
For Belt Width (mm) 12.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.409
Outside Diameter (in) 3.346
Flange Diameter (in) 3.819
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1610
P.D. (mm) 87.00
O.D. (mm) 85.00
MOQ 1
Weight (lb) 1.29
Part Number Cross Reference 8MX-34S-12, B8MCS-34-12, 34G-8M-12-1610, 20296058, 8MX-34S-12-1610 HT500 SPKT, 8MPC34S12, 34-8MX12-1610, 481885, 34-8MX12-1610

Comparable to: 8MX-34S-12, B8MCS-34-12, 34G-8M-12-1610, 20296058, 8MX-34S-12-1610 HT500 SPKT, 8MPC34S12, 34-8MX12-1610, 481885, 34-8MX12-1610
