34-8MX36-6FS6, Timing Pulley

34-8MX36-6FS6 - Cast Iron Powerhouse® MX Pulleys

34-8MX36-6FS6

Click to Enlarge

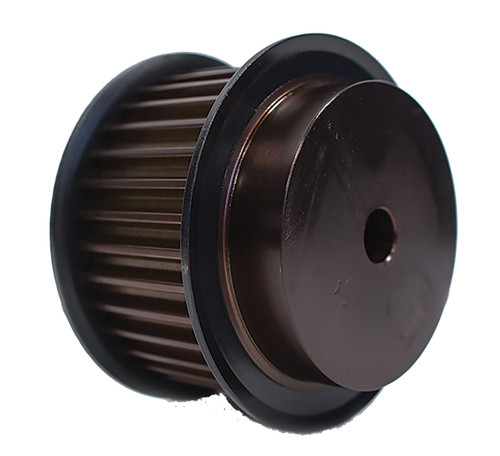

34-8MX36-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 34-8MX36-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-8MX36-6FS6
Teeth 34
Tooth Style 8MX
For Belt Width (mm) 36
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 3.409
Outside Diameter (in) 3.346
Flange Diameter (in) 3.819
Face Width (in) 1.859
Overall Length (in) 2.453
Hub Diameter (in) 2.828
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.620
Unit System Inch
P.D. (mm) 87.00
O.D. (mm) 85.00
MOQ 1
Weight (lb) 4.91
Part Number Cross Reference 34-8MX36-6FS6
