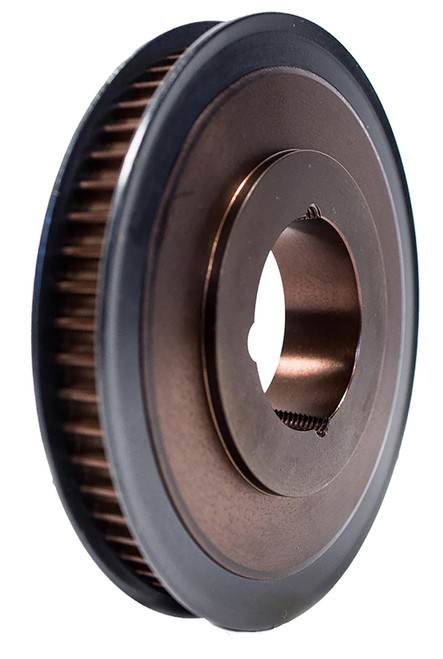

34-8P12-1210, Timing Pulley

34-8P12-1210 - Cast Iron Powerhouse® Pulleys

34-8P12-1210

34-8P12-1210 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

34-8P12-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-8P12-1210
Teeth 34
Tooth Style 8P
For Belt Width (mm) 12.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.409
Outside Diameter (in) 3.355
Flange Diameter (in) 3.819
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1210
P.D. (mm) 87.00
O.D. (mm) 85.20
MOQ 1
Weight (lb) 1.59
Part Number Cross Reference P34-8MGT-12, 34-8P12-1210, 34-8P12-1210
