34-8P50-1610, Timing Pulley

34-8P50-1610 - Cast Iron Powerhouse® Pulleys

34-8P50-1610

Click to Enlarge

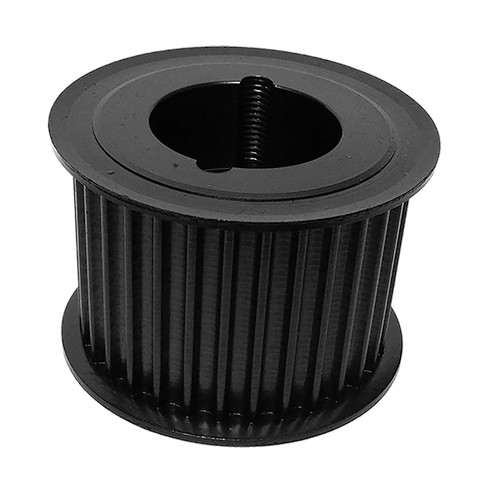

34-8P50-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-8P50-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-8P50-1610
Teeth 34
Tooth Style 8P
For Belt Width (mm) 50.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.409
Outside Diameter (in) 3.355
Flange Diameter (in) 3.819
Face Width (in) 2.380
Overall Length (in) 2.380
Min. Bore (in) 0.5
Pulley Belt Width (in) 2.140
Unit System Inch
Bushing 1610
P.D. (mm) 87.00
O.D. (mm) 85.20
MOQ 1
Weight (lb) 2.59
Part Number Cross Reference P34-8MGT-50, B348M50TL, P34-8M-50-1610, 20182789, P34-8M-50-1610 HT250 SPKT, P348M50TL, 34-8P50-1610, 114822, 34-8P50-1610
