34LT187-6FA3, Timing Pulley

34LT187-6FA3 - Aluminum Imperial Pitch Pulleys

34LT187-6FA3

Click to Enlarge

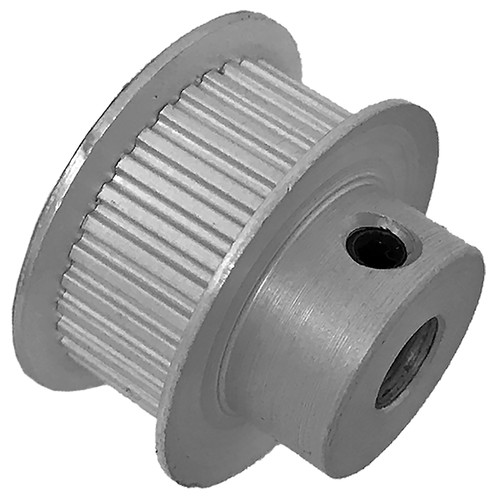

34LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34LT187-6FA3
Teeth 34
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.883
Outside Diameter (in) 0.863
Flange Diameter (in) 1.050
Face Width (in) 0.324
Overall Length (in) 0.625
Hub Diameter (in) 0.624
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 22.00
O.D. (mm) 21.90
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A6-34DF01808, A6A6-34DF01808, 34LT-187 X 1/4-6F, 34M187-1A X 1/4, 34LT187-6FA3, 34LT187-6FA3
Set Screw Quantity 2
