35-8MX12-1610, Timing Pulley

35-8MX12-1610 - Cast Iron Powerhouse® MX Pulleys

Product Details for 35-8MX12-1610

Comparable to: 8MX-35S-12, 77181035, 8MX35S12-1610, 2764744, B8MCS-35-12, 35G-8M-12-1610, 20839723, 481886, 8MPC35S12, 35G8M12

Click to Enlarge

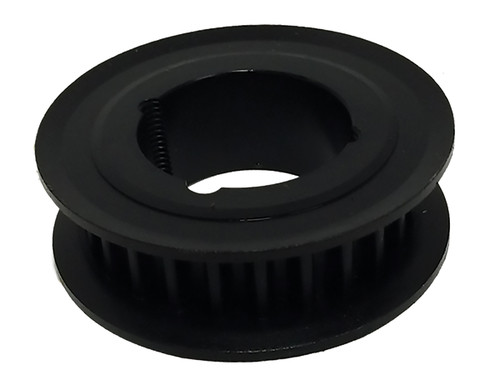

35-8MX12-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 35-8MX12-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35-8MX12-1610
Teeth 35
Tooth Style 8MX
For Belt Width (mm) 12
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.509
Outside Diameter (in) 3.446
Flange Diameter (in) 3.938
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1610
MOQ 1
Weight (lb) 1.43
Part Number Cross Reference 8MX-35S-12, 77181035, 8MX35S12-1610, 2764744, B8MCS-35-12, 35G-8M-12-1610, 20839723, 481886, 8MPC35S12, 35G8M12
