35-8P12-1210, Timing Pulley

35-8P12-1210

Click to Enlarge

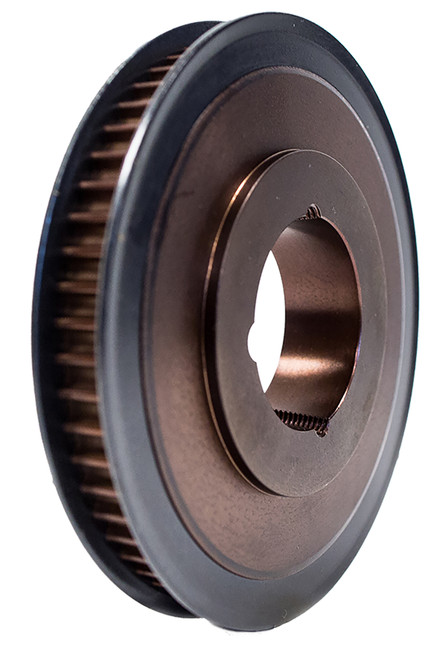

35-8P12-1210, Timing Pulley, Steel, Black Oxide,

Learn more about 35-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	35-8P12-1210
Teeth	35
Tooth Style	8P
For Belt Width (mm)	12.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1210 Bushing
Pitch Diameter (in)	3.509
Outside Diameter (in)	3.455
Flange Diameter (in)	3.938
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.760
Unit System	Inch
Bushing	1210
P.D. (mm)	89.00
O.D. (mm)	87.80
MOQ	1
Weight (lb)	1.91
Part Number Cross Reference	P35-8MGT-12, 35-8P12-1210, 35-8P12-1210
