35-8P30-1610, Timing Pulley

35-8P30-1610 - Cast Iron Powerhouse® Pulleys

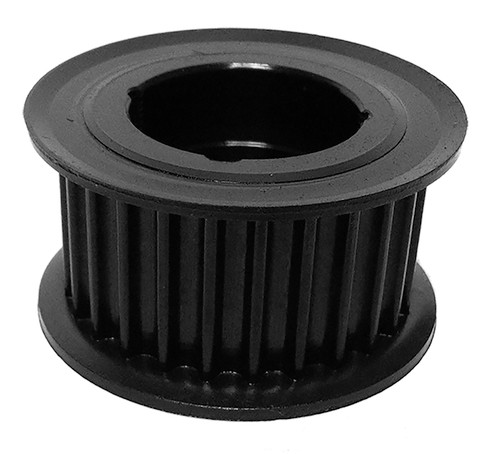

35-8P30-1610

Click to Enlarge

35-8P30-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 35-8P30-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35-8P30-1610
Teeth 35
Tooth Style 8P
For Belt Width (mm) 30
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.509
Outside Diameter (in) 3.455
Flange Diameter (in) 3.938
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 1610
P.D. (mm) 89.00
O.D. (mm) 87.80
MOQ 1
Weight (lb) 1.92
Part Number Cross Reference P35-8MGT-30, B358M30TL, 35-8P30-1610
