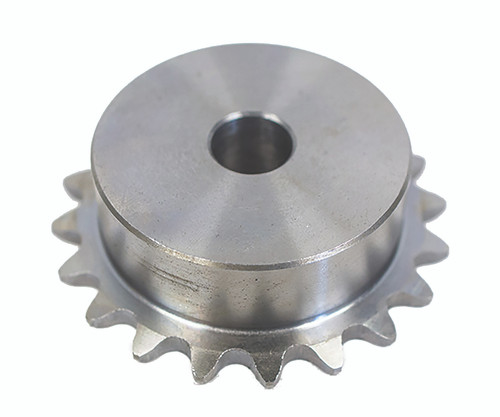

35B19, Roller Chain Sprocket

35B19

35B19

35B19, Roller Chain Sprocket, Steel

Learn more about 35B19 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35B19
Teeth 19
Tooth Style 35
Type B
Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.278
Outside Diameter (in) 2.472
Face Width (in) 0.168
Overall Length (in) 0.750
Hub Diameter (in) 1.844
Min. Bore (in) 0.5
Unit System Inch
MOQ 1
Weight (lb) 0.54
Part Number Cross Reference 35B19, 35B19, 35B19, 35B19, 35B19
Number of Strands 1
Number of Hubs 1

Related Products

Comparable to: 35B19, 35B19, 35B19, 35B19, 35B19

Documentation

Download Catalog
For custom parts click here
REACH Certification
RoHS Certification
