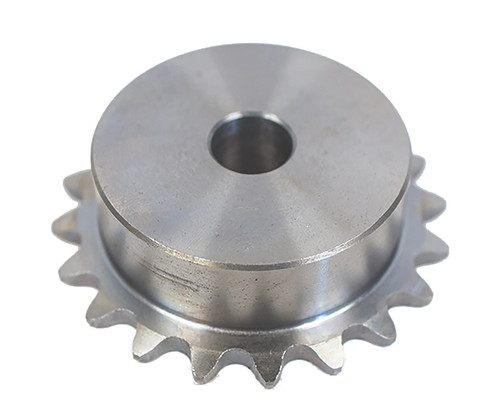

35B20, Roller Chain Sprocket

35B20, 35EM-B-20

35B20

35B20, Roller Chain Sprocket, Steel

Learn more about 35B20 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35B20
Teeth 20
Tooth Style 35
Type B
Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.397
Outside Diameter (in) 2.593
Face Width (in) 0.168
Overall Length (in) 0.750
Hub Diameter (in) 1.938
Min. Bore (in) 0.5
Unit System Inch
MOQ 1
Weight (lb) 0.59
Part Number Cross Reference 35B20, 35B20, 35B20, 35B20, 35B20
Number of Strands 1
Number of Hubs 1
