35B22, Roller Chain Sprocket

35B22, 35EM-B-22

35B22

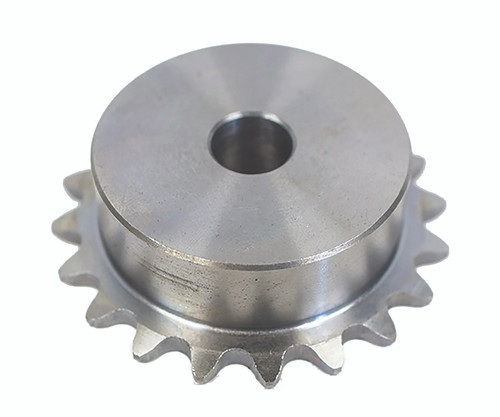

35B22, Roller Chain Sprocket, Steel

Learn more about 35B22 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35B22
Teeth 22
Tooth Style 35
Type B
Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.635
Outside Diameter (in) 2.833
Face Width (in) 0.168
Overall Length (in) 0.875
Hub Diameter (in) 2.000
Min. Bore (in) 0.5
Unit System Inch
MOQ 1
Weight (lb) 0.80
Part Number Cross Reference 35B22, 35B22, 35B22, 35B22, 35B22
Number of Strands 1
Number of Hubs 1

Related Products

Comparable to: 35B22, 35B22, 35B22, 35B22, 35B22
