35B23, Roller Chain Sprocket

35B23

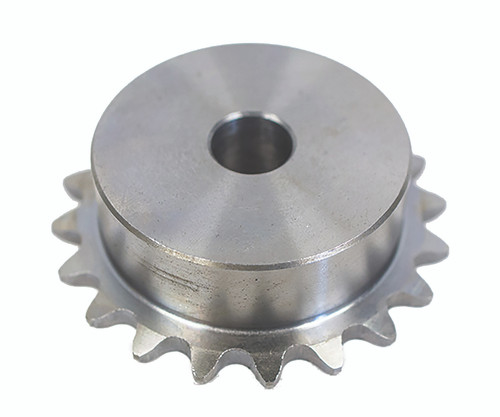

35B23, Roller Chain Sprocket, Steel

Learn more about 35B23 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	35B23
Teeth	23
Tooth Style	35
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.754
Outside Diameter (in)	2.953
Face Width (in)	0.168
Overall Length (in)	0.875
Hub Diameter (in)	2.000
Min. Bore (in)	0.5
Unit System	Inch
MOQ	1
Weight (lb)	0.82
Part Number Cross Reference	35B23, 35B23, 35B23, 35B23, 35B23
Number of Strands	1
Number of Hubs	1
