35B30, Roller Chain Sprocket

35B30, 35EM-B-30

35B30

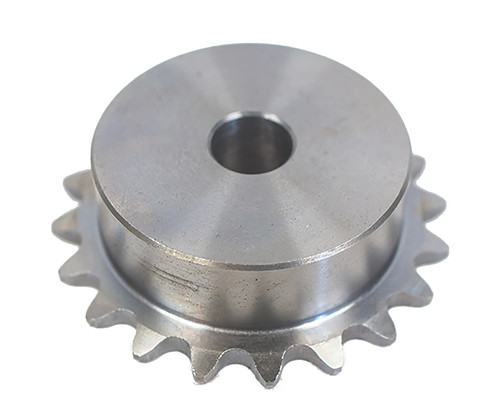

35B30, Roller Chain Sprocket, Steel

Learn more about 35B30 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35B30
Teeth 30
Tooth Style 35
Type B
Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 3.588
Outside Diameter (in) 3.793
Face Width (in) 0.168
Overall Length (in) 0.875
Hub Diameter (in) 2.000
Min. Bore (in) 0.5
Unit System Inch
MOQ 1
Weight (lb) 1.02
Part Number Cross Reference 35B30, 35B30, 35B30, 35B30, 35B30
Number of Strands 1
Number of Hubs 1

Related Products

Comparable to: 35B30, 35B30, 35B30, 35B30, 35B30
