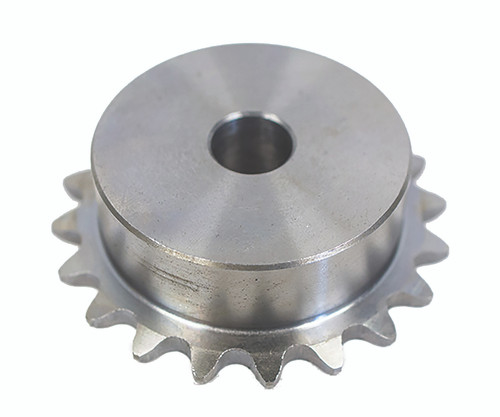

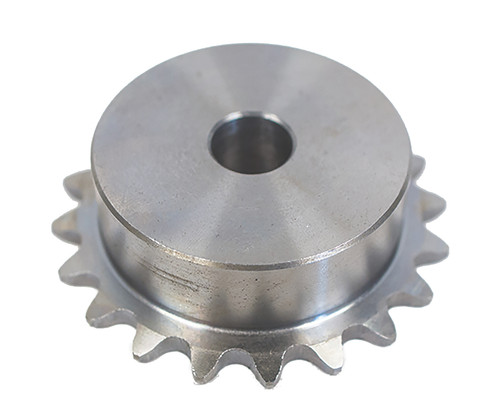

35B70, Roller Chain Sprocket

35B70

35B70, Roller Chain Sprocket, Steel

Learn more about 35B70 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	35B70
Teeth	70
Tooth Style	35
Type	B
Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.750
Bore Description	3/4 Inch Minimum Plain Bore
Pitch Diameter (in)	8.358
Outside Diameter (in)	8.575
Face Width (in)	0.168
Overall Length (in)	1.000
Hub Diameter (in)	2.250
Min. Bore (in)	0.75
Unit System	Inch
MOQ	1
Weight (lb)	3.12
Part Number Cross Reference	35B70, 35B70, 35B70, 35B70, 35B70
Number of Strands	1
Number of Hubs	1
