35H-PS10A, Timing Pulley Stock

35H-PS10A, 35H-PS-10A, H 35

Product Details for 35H-PS10A

Comparable to: 35H-PS-10A, H 35, 35H-PS10A

Click to Enlarge

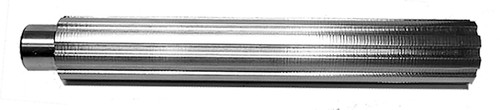

35H-PS10A, Timing Pulley Stock, Aluminum

Learn more about 35H-PS10A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35H-PS10A
Teeth 35
Tooth Style H
Material Aluminum
Pitch Diameter (in) 5.571
Outside Diameter (in) 5.519
Overall Length (in) 11.000
Unit System Inch
Min. Usable Length (in) 10.000
P.D. (mm) 141.50
O.D. (mm) 140.20
MOQ 1
Weight (lb) 24.00
Part Number Cross Reference 35H-PS-10A, H 35, 35H-PS10A
Shank Length (in) 1.0000
