35V1030SF, V-Belt Pulley

35V1030SF, 5V10.3-3-SF, 20180659, 5V1033, 3-5V10.3, 3/5V1030SF

35V1030SF

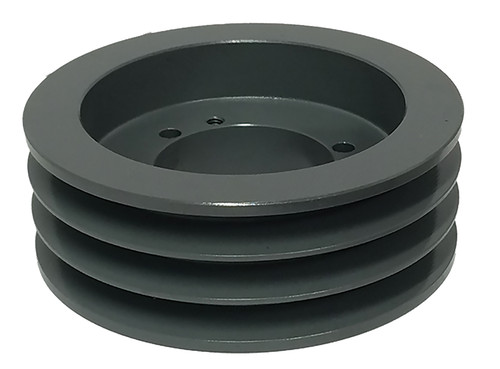

35V1030SF, V-Belt Pulley, Cast Iron

Learn more about 35V1030SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35V1030SF
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 10.200
Outside Diameter (in) 10.300
Face Width (in) 2.375
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 24.60
Part Number Cross Reference QD3/5V10.30, 35V1030SF, 5V10.3-3-SF, 20180659, 3-5V10.30-SF SHEAVE, 5V1033, 3-5V10.30, 35V1030SF, 455284, 35V1030SF
Grooves 3

Related Products

Comparable to: QD3/5V10.30, 35V1030SF, 5V10.3-3-SF, 20180659, 3-5V10.30-SF SHEAVE, 5V1033, 3-5V10.30, 35V1030SF, 455284, 35V1030SF
