36-14MX37-2517, Timing Pulley

36-14MX37-2517 - Cast Iron Powerhouse® MX Pulleys

36-14MX37-2517

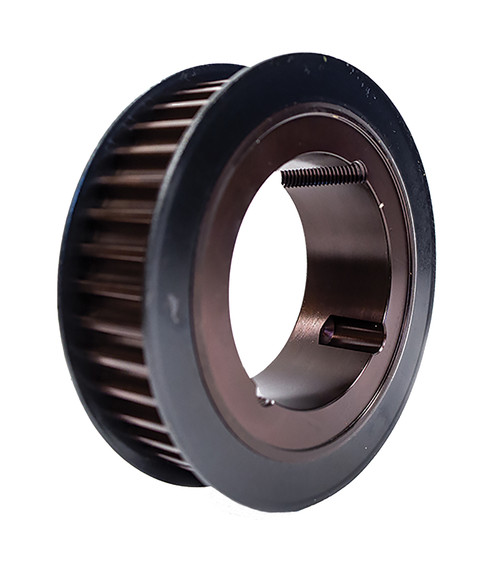

Click to Enlarge

36-14MX37-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-14MX37-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-14MX37-2517
Teeth 36
Tooth Style 14MX
For Belt Width (mm) 37.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.206
Flange Diameter (in) 6.816
Face Width (in) 1.690
Overall Length (in) 2.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.740
Unit System Inch
Bushing 2517
P.D. (mm) 160.00
O.D. (mm) 157.60
MOQ 1
Weight (lb) 9.89
Part Number Cross Reference 14MX-36S-37, 14MX36S37-2517, B14MCS-36-37, 36G-14M-37-2517, 20296114, 14MX-36S-37-2517 HT500 SPKT, 14MPC36S37, 14MX36S37-2517, 36-14MX37-2517, 482060, 36-14MX37-2517

Comparable to: 14MX-36S-37, 14MX36S37-2517, B14MCS-36-37, 36G-14M-37-2517, 20296114, 14MX-36S-37-2517 HT500 SPKT, 14MPC36S37, 14MX36S37-2517, 36-14MX37-2517, 482060, 36-14MX37-2517
