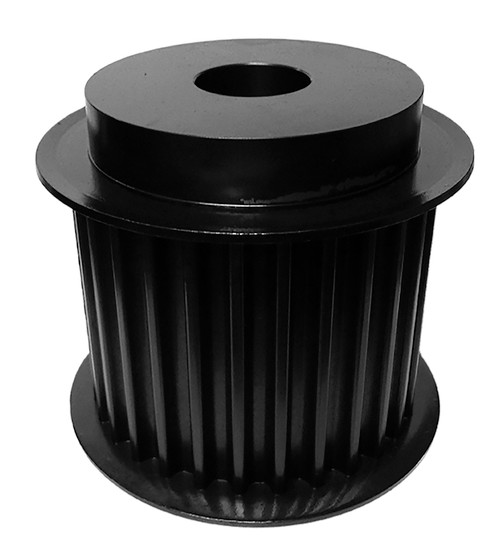

36-14MX90-6FS16, Timing Pulley

36-14MX90-6FS16 - Cast Iron Powerhouse® MX Pulleys

Product Details for 36-14MX90-6FS16

Comparable to: 36-14MX90-6FS16, PB14MX-36S-90, PB14MCS-36-90, 36G-14M-90-MPB, 208398

36-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 36-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-14MX90-6FS16
Teeth 36
Tooth Style GT2 14mm
For Belt Width (mm) 90.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.206
Flange Diameter (in) 6.816
Face Width (in) 4.203
Overall Length (in) 4.203
Hub Diameter (in) 5.300
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Max. Bore (in) 5.05
Weight (lb) 33.78
Part Number Cross Reference 36-14MX90-6FS16, PB14MX-36S-90, PB14MCS-36-90, 36G-14M-90-MPB, 208398
