36-14P85-3020, Timing Pulley

36-14P85-3020 - Cast Iron Powerhouse® Pulleys

36-14P85-3020

Click to Enlarge

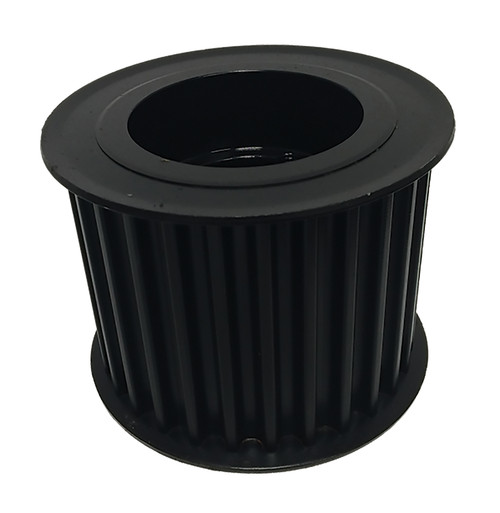

36-14P85-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-14P85-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-14P85-3020
Teeth 36
Tooth Style 14P
For Belt Width (mm) 85.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.206
Flange Diameter (in) 6.816
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 0.875
Pulley Belt Width (in) 3.680
Unit System Inch
Bushing 3020
P.D. (mm) 160.00
O.D. (mm) 157.60
MOQ 1
Weight (lb) 13.55
Part Number Cross Reference P36-14MGT-85, B3614M85TL, P36-14M-85-3020, 20182794, P36-14M-85-3020 HT250 SPKT, P3614M85TL, 36-14P85-3020, 112949, 36-14P85-3020

Comparable to: P36-14MGT-85, B3614M85TL, P36-14M-85-3020, 20182794, P36-14M-85-3020 HT250 SPKT, P3614M85TL, 36-14P85-3020, 112949, 36-14P85-3020
