36-3M06-6FA6, Timing Pulley

36-3M06-6FA6

Click to Enlarge

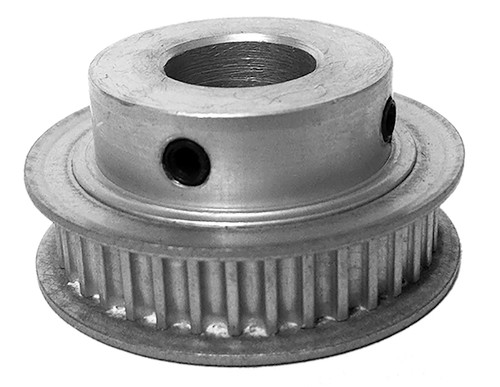

36-3M06-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-3M06-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	36-3M06-6FA6
Teeth	36
Tooth Style	HTD3mm
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.500
Bore Description	1/2 Inch Finished Bore
Pitch Diameter (in)	1.353
Outside Diameter (in)	1.323
Flange Diameter (in)	1.473
Face Width (in)	0.407
Overall Length (in)	0.713
Hub Diameter (in)	1.000
Min. Bore (in)	0.5
Unit System	Inch
P.D. (mm)	34.00
O.D. (mm)	33.60
MOQ	1
Weight (lb)	0.07
Part Number Cross Reference	36-3M06-6FA6, 36-3M06-6FA6
Set Screw Quantity	2
