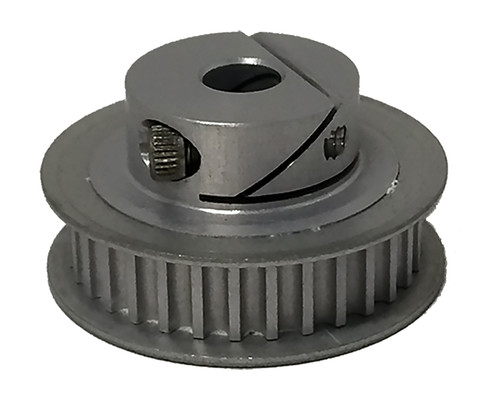

36-3M06MIA6, Timing Pulley

36-3M06MIA6 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

36-3M06MIA6

36-3M06MIA6 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

36-3M06MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-3M06MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-3M06MIA6
Teeth 36
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.353
Outside Diameter (in) 1.323
Unit System Metric
P.D. (mm) 34.00
O.D. (mm) 33.60
Flange Diameter (mm) 37.40
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 19.10
Number & Screw Size 1 x M2
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference 36-3M06MIA6, 36-3M06MIA6
