36-3P06-6A3, Timing Pulley

36-3P06-6A3 - Aluminum Powerhouse® Pulleys

Product Details for 36-3P06-6A3

Comparable to: 36-3P06-6A3, A 6A53-036NF0608, A6A53-036NF0608

Click to Enlarge

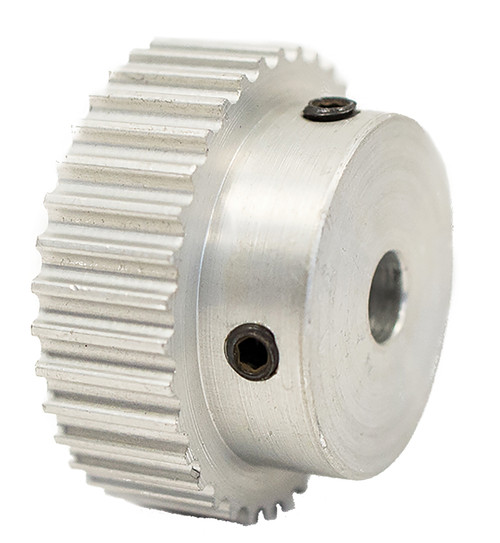

36-3P06-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-3P06-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 36-3P06-6A3
Teeth 36
Tooth Style GT 3mm
For Belt Width (mm) 6.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.353
Outside Diameter (in) 1.323
Face Width (in) 0.407
Overall Length (in) 0.713
Hub Diameter (in) 1.000
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.75
Weight (lb) 0.08
Part Number Cross Reference 36-3P06-6A3, A 6A53-036NF0608, A6A53-036NF0608
