36-5M15-6A4, Timing Pulley

36-5M15-6A4 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 36-5M15-6A4

Comparable to: A 6A25-036NF1510, A6A25-036NF1510, P36-5M-15AL, 78821037, PT036G08L15N, P36-5M-15

Click to Enlarge

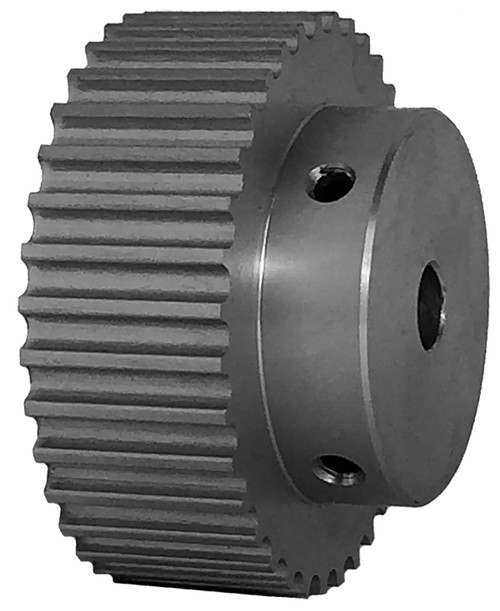

36-5M15-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-5M15-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-5M15-6A4
Teeth 36
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.256
Outside Diameter (in) 2.211
Face Width (in) 0.781
Overall Length (in) 1.187
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
MOQ 1
Weight (lb) 0.37
Part Number Cross Reference A 6A25-036NF1510, A6A25-036NF1510, P36-5M-15AL, 78821037, PT036G08L15N, P36-5M-15
Set Screw Quantity 2
