36-5M25-6FS6, Timing Pulley

36-5M25-6FS6

Click to Enlarge

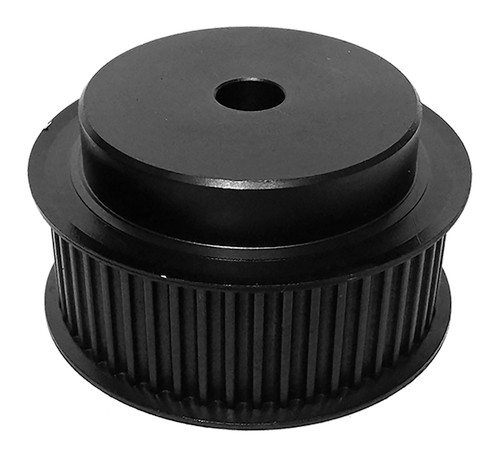

36-5M25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 36-5M25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	36-5M25-6FS6
Teeth	36
Tooth Style	HTD5mm
For Belt Width (mm)	25.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.256
Outside Diameter (in)	2.211
Flange Diameter (in)	2.375
Face Width (in)	1.230
Overall Length (in)	1.730
Hub Diameter (in)	1.800
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.040
Unit System	Inch
P.D. (mm)	57.00
O.D. (mm)	56.20
MOQ	1
Weight (lb)	1.57
Part Number Cross Reference	P36-5M-25-MPB, P365M25-MPB, P36-5M-25X1/2 MPB, 20182308, P36-5M-25 X 1/2 MPB HT SPKT, P365M25, P36-5M-25, P365M25MPB, 36-5M25-6FS6, 114654, 36-5M25-6FS6
