36-5P09-6A4, Timing Pulley

36-5P09-6A4 - Aluminum Powerhouse® Pulleys

36-5P09-6A4

Click to Enlarge

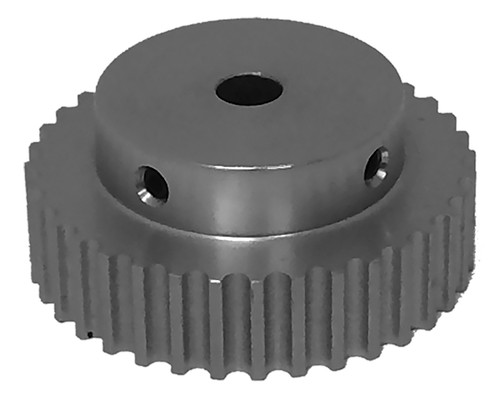

36-5P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-5P09-6A4 Timing Pulleys and Toronto Gear View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-5P09-6A4
Teeth 36
Tooth Style 5P
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.256
Outside Diameter (in) 2.211
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 57.00
O.D. (mm) 56.20
MOQ 1
Weight (lb) 0.27
Part Number Cross Reference P36-5MGT-09AL, 36-5P09-6A4, 36-5P09-6A4
Set Screw Quantity 2
