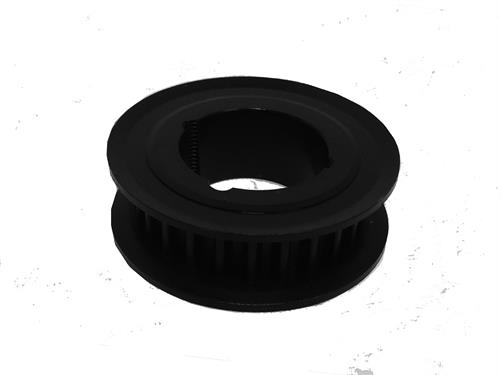

36-8MX12-1610, Timing Pulley

36-8MX12-1610

Click to Enlarge

36-8MX12-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-8MX12-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	36-8MX12-1610
Teeth	36
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	3.609
Outside Diameter (in)	3.546
Flange Diameter (in)	3.938
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.760
Unit System	Inch
Bushing	1610
P.D. (mm)	92.00
O.D. (mm)	90.10
MOQ	1
Weight (lb)	1.52
Part Number Cross Reference	8MX-36S-12, B8MCS-36-12, 36G-8M-12-1610, 20296062, 8MX-36S-12-1610 HT500 SPKT, 8MPC36S12, 7970K12, 36-8MX12-1610, 481887, 36-8MX12-1610
