36-8MX36-6FS6 Powerhouse™ Mx Pulleys

36-8MX36-6FS6, PB8MX-36S-36, PB8MCS-36-36, 36G-8M-36-MPB, 20839726

Product Details for 36-8MX36-6FS6

Comparable to: 36-8MX36-6FS6, PB8MX-36S-36, PB8MCS-36-36, 36G-8M-36-MPB, 20839726

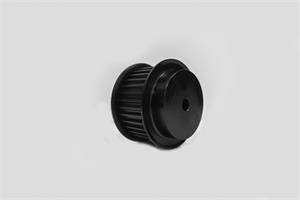

36-8MX36-6FS6, Timing Pulley, Powerhouse MX, 1/2 Inch Bore, Cast Iron

Specifications

Product Number 36-8MX36-6FS6
Teeth 36
Tooth Style GT2 8mm
For Belt Width (mm) 36.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.5
Pitch Diameter (in) 3.609
Outside Diameter (in) 3.546
Flange Diameter (in) 3.938
Face Width (in) 1.859
Overall Length (in) 2.516
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.620
Unit System Inch
Weight (lb) 1.10
List Price (1-9 Qty.) (USD) 99.34
Discount Price (10-24 Qty.) (USD) 89.41
Discount Price (25-49 Qty.) (USD) 76.99
Part Number Cross Reference 36-8MX36-6FS6, PB8MX-36S-36, PB8MCS-36-36, 36G-8M-36-MPB, 20839726

Documentation

Download Catalog 2015_BBMAN_CATALOG_161.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36-8MX36-6FS6_REACH_cert
RoHS Certification 36-8MX36-6FS6_RoHS_cert
