36-8MX62-6FS10 Powerhouse™ Mx Pulleys

36-8MX62-6FS10, PB8MX-36S-62, PB8MCS-36-62, 36G-8M-62-MPB, 20839728

Product Details for 36-8MX62-6FS10

Comparable to: 36-8MX62-6FS10, PB8MX-36S-62, PB8MCS-36-62, 36G-8M-62-MPB, 20839728

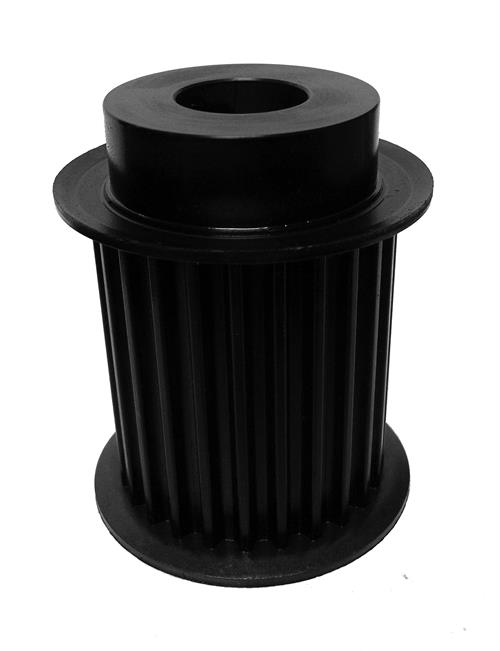

36-8MX62-6FS10, Timing Pulley, Powerhouse MX, 1 Inch Bore, Cast Iron

Specifications

Product Number 36-8MX62-6FS10
Teeth 36
Tooth Style GT2 8mm
For Belt Width (mm) 62.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1
Pitch Diameter (in) 3.609
Outside Diameter (in) 3.546
Flange Diameter (in) 3.938
Face Width (in) 2.906
Overall Length (in) 3.563
Min. Bore (in) 1
Pulley Belt Width (in) 2.670
Unit System Inch
Weight (lb) 1.10
List Price (1-9 Qty.) (USD) 116.31
Discount Price (10-24 Qty.) (USD) 101.77
Discount Price (25-49 Qty.) (USD) 90.14
Part Number Cross Reference 36-8MX62-6FS10, PB8MX-36S-62, PB8MCS-36-62, 36G-8M-62-MPB, 20839728

Documentation

Download Catalog 2015_BBMAN_CATALOG_164.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36-8MX62-6FS10_REACH_cert
RoHS Certification 36-8MX62-6FS10_RoHS_cert
