36-8MXF62X1, Timing Pulley

36-8MXF62X1 - Cast Iron Powerhouse® MX Pulleys

36-8MXF62X1

Click to Enlarge

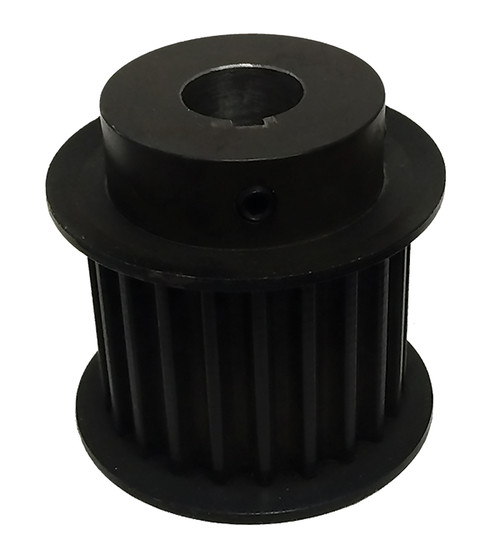

36-8MXF62X1, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-8MXF62X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-8MXF62X1
Teeth 36
Tooth Style 8MX
For Belt Width (mm) 62.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Pitch Diameter (in) 3.609
Outside Diameter (in) 3.546
Flange Diameter (in) 3.940
Face Width (in) 2.906
Overall Length (in) 3.563
Min. Bore (in) 1
Unit System Inch
P.D. (mm) 92.00
O.D. (mm) 90.10
MOQ 1
Weight (lb) 4.50
Part Number Cross Reference 36-8MXF62X1, 36-8MXF62X1
Set Screw Quantity 2
