36HQ200 Imperial Pitch Pulleys

36HQ200

Product Details for 36HQ200

Comparable to: 36HQ200,

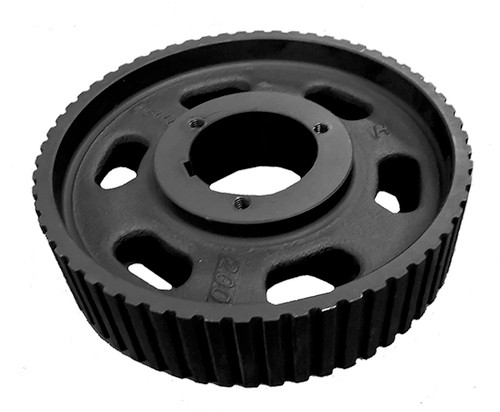

36HQ200, Timing Pulley, Powerhouse Timing, Q1 Bushing, Cast Iron

Specifications

Product Number 36HQ200
Teeth 36
Tooth Style H
For Belt Width (in) 2.000
Type E1F
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) Q1
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.678
Flange Diameter (in) 6.000
Face Width (in) 2.500
Overall Length (in) 2.781
Unit System Inch
Bushing Q1
Weight (lb) 9.40
List Price (1-9 Qty.) (USD) 169.53
Discount Price (10-24 Qty.) (USD) 161.46
Discount Price (25-49 Qty.) (USD) 143.52
Part Number Cross Reference 36HQ200,

Documentation

Download Catalog 2015_BBMAN_CATALOG_61.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
