36L050-6FS6 Imperial Pitch Pulleys

36L050-6FS6, A 6C4-36DFB5016, A6C4-36DFB5016, PB36L050, 78231525, 36LB050, 1144

Product Details for 36L050-6FS6

Comparable to: 36L050-6FS6, A 6C4-36DFB5016, A6C4-36DFB5016, PB36L050, 78231525, 36LB050, 1144

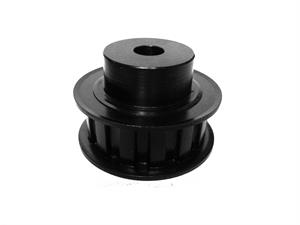

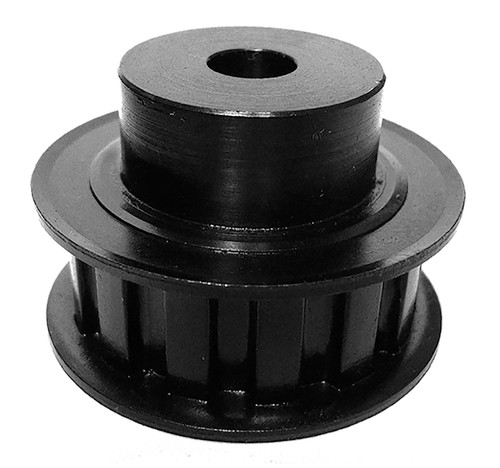

36L050-6FS6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Steel

Specifications

Product Number 36L050-6FS6
Teeth 36
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.520
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 3.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.570
Unit System Inch
Max. Bore (in) 3.25
Weight (lb) 4.25
Part Number Cross Reference 36L050-6FS6, A 6C4-36DFB5016, A6C4-36DFB5016, PB36L050, 78231525, 36LB050, 1144

Documentation

Download Catalog 2015_BBMAN_CATALOG_32.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36L050-6FS6_REACH_cert
RoHS Certification 36L050-6FS6_RoHS_cert
