36L075-6FS7 Imperial Pitch Pulleys

36L075-6FS7, PB36L075, 78231528, 36LB075, 114447

Product Details for 36L075-6FS7

Comparable to: 36L075-6FS7, PB36L075, 78231528, 36LB075, 114447

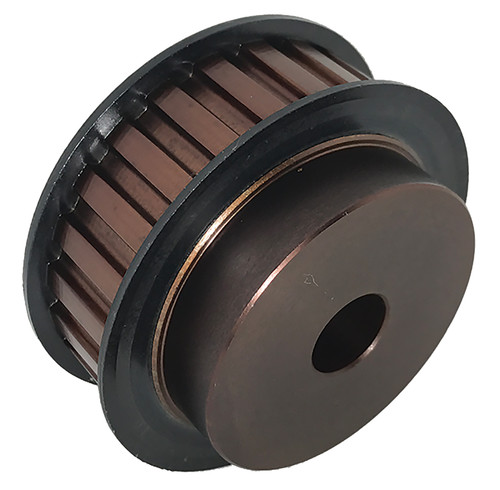

36L075-6FS7, Timing Pulley, Powerhouse Timing, 5/8 Inch Bore, Cast Iron

Specifications

Product Number 36L075-6FS7
Teeth 36
Tooth Style L
For Belt Width (in) 0.750
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.625
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.520
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 3.500
Min. Bore (in) 0.625
Pulley Belt Width (in) 0.820
Unit System Inch
Weight (lb) 4.40
List Price (1-9 Qty.) (USD) 57.4
Discount Price (10-24 Qty.) (USD) 51.66
Discount Price (25-49 Qty.) (USD) 45.2
Part Number Cross Reference 36L075-6FS7, PB36L075, 78231528, 36LB075, 114447

Documentation

Download Catalog 2015_BBMAN_CATALOG_38.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36L075-6FS7_REACH_cert
RoHS Certification 36L075-6FS7_RoHS_cert
