36L100-6FA6 Imperial Pitch Pulleys

36L100-6FA6

Product Details for 36L100-6FA6

Comparable to: 36L100-6FA6

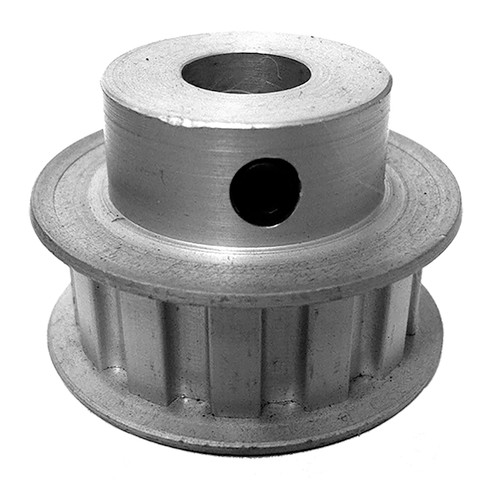

36L100-6FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Specifications

Teeth 36
Tooth Style L
For Belt Width (in) 1.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.520
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 3.500
Set Screw 2 x 1/4-20 @ 90°
Min. Bore (in) 0.5
Unit System Inch
Max. Bore (in) 3.25
Weight (lb) 2.19
Part Number Cross Reference 36L100-6FA6
