36L100-6FS7 Imperial Pitch Pulleys

36L100-6FS7, PB36L100, 78231532, 36LB100, 1144

Product Details for 36L100-6FS7

Comparable to: 36L100-6FS7, PB36L100, 78231532, 36LB100, 1144

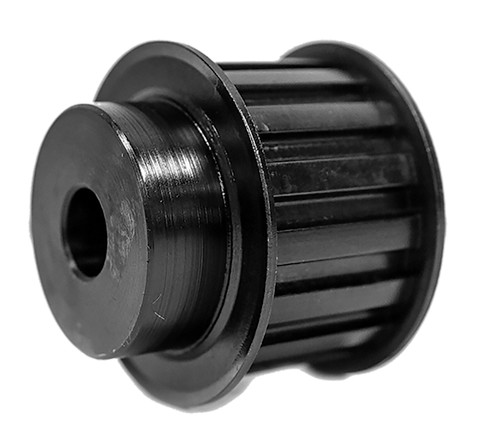

36L100-6FS7, Timing Pulley, Powerhouse Timing, 5/8 Inch Bore, Cast Iron

Specifications

Product Number 36L100-6FS7
Teeth 36
Tooth Style L
For Belt Width (in) 1.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 5/8 Inch Minimum Plain Bore
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.520
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 3.500
Min. Bore (in) 0.625
Pulley Belt Width (in) 1.070
Unit System Inch
Max. Bore (in) 3.25
Weight (lb) 5.40
Part Number Cross Reference 36L100-6FS7, PB36L100, 78231532, 36LB100, 1144

Documentation

Download Catalog 2015_BBMAN_CATALOG_44.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36L100-6FS7_REACH_cert
RoHS Certification 36L100-6FS7_RoHS_cert
