36LP075 Imperial Pitch Pulleys

36LP075

Product Details for 36LP075

Comparable to: 36LP075

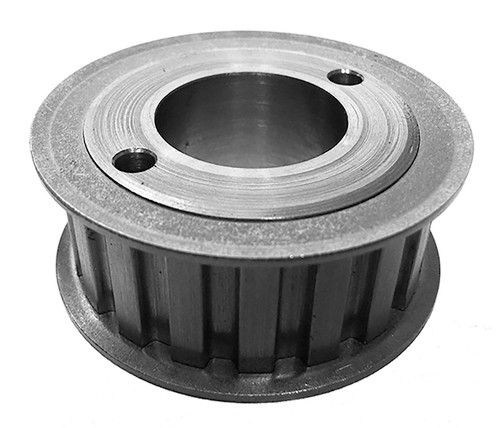

36LP075, Timing Pulley, Powerhouse Timing, P1 Bushing, Cast Iron

Specifications

Product Number 36LP075
Teeth 36
Tooth Style L
For Belt Width (in) 0.750
Type 7
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) P1
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.267
Flange Diameter (in) 4.688
Face Width (in) 1.000
Overall Length (in) 2.188
Unit System Inch
Bushing P1
Weight (lb) 3.90
Part Number Cross Reference 36LP075

Documentation

Download Catalog 2015_BBMAN_CATALOG_42.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36LP075_REACH_cert
RoHS Certification 36LP075_RoHS_cert
