36MP025-6FA3 Imperial Pitch Pulleys

36MP025-6FA3, A 6A16-036DF2508, PB36MXL025, 78260136, PT036A08L04T, TP7A4W4-36

Product Details for 36MP025-6FA3

Comparable to: 36MP025-6FA3, A 6A16-036DF2508, PB36MXL025, 78260136, PT036A08L04T, TP7A4W4-36

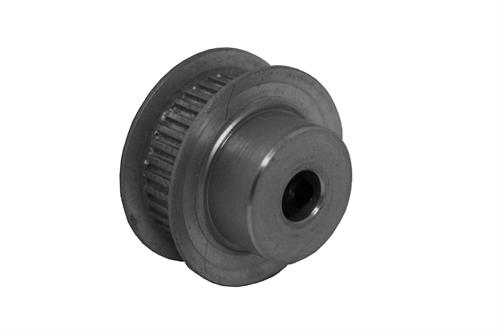

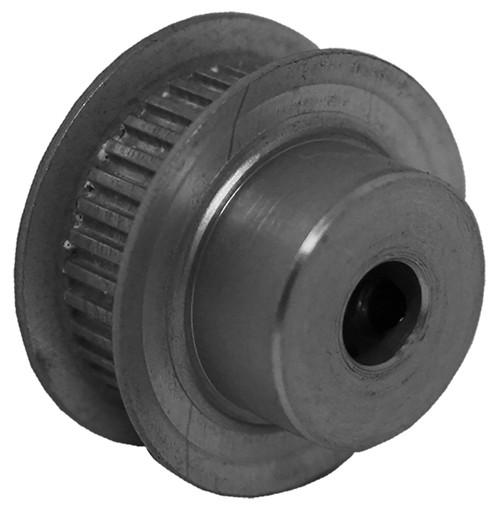

36MP025-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 36MP025-6FA3
Teeth 36
Tooth Style MXL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.917
Outside Diameter (in) 0.897
Flange Diameter (in) 1.105
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.676
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
Weight (lb) 0.06
List Price (1-9 Qty.) (USD) 10.04
Discount Price (10-24 Qty.) (USD) 9.29
Discount Price (25-49 Qty.) (USD) 6.78
Discount Price (50-99 Qty.) (USD) 6.02
Discount Price (100-249 Qty.) (USD) 5.52
Part Number Cross Reference 36MP025-6FA3, A 6A16-036DF2508, PB36MXL025, 78260136, PT036A08L04T, TP7A4W4-36

Documentation

Download Catalog 2015_BBMAN_CATALOG_4.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36MP025-6FA3_REACH_cert
RoHS Certification 36MP025-6FA3_RoHS_cert
